Bosch PN 0 280 750 473  Electronic Throttle Body (82mm bore) & Bosch PN 0 280 750 150 Electronic Throttle Body (54mm bore)

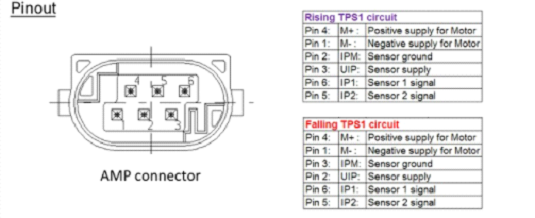

View looking into housing on throttle body.

View looking into housing on throttle body.



Mating connector part # D 261 205 358-01, possibly also 1-967616-1



Link Wiring Diagram

Pin

Description

 1

 Motor -

 2

 Sensor Ground

 3

 5V

 4

 Motor +

 5

 TPS (Sub)

 6

 TPS (Main)



0 28 750 473 (82mm Bore) & 0 28 750 150 (54mm Bore) Approximate Values

TPS (Main) Closed (0%)

0.55 V

TPS (Main) Open (100%)

4.40 V

TPS (Sub) Closed (0%)

4.44 V

TPS (Sub) Open (100%)

0.59 V

TPS (Sub) 100%

100%

PWM Frequency

10,000Hz

Proportional Gain

4.00

Integral Gain

0.080

Derivative Gain

50.00



Bosch PN 0 280 755 051 Accelerator Pedal Module

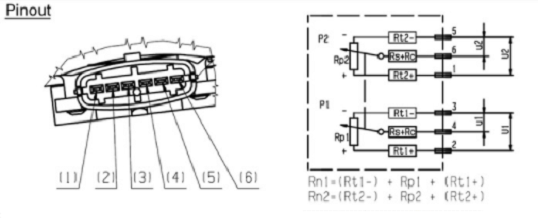

View looking into housing on pedal

View looking into housing on pedal

]



Mating connector F 005 X11 508, possibly also 1928403740



Pin

Description

 1

 5V

 2

 5V

 3

 Sensor Ground

 4

 APS (Main)

 5

 Sensor Ground

6

APS (Sub)



Approximate Voltages



APS (Main)

APS (Sub)

Closed (0%) Voltage

0.67 V

0.34 V

Open (100%) Voltage

3.99 V

2.21 V

APS (Sub) 100%

100%
