3 Channel:

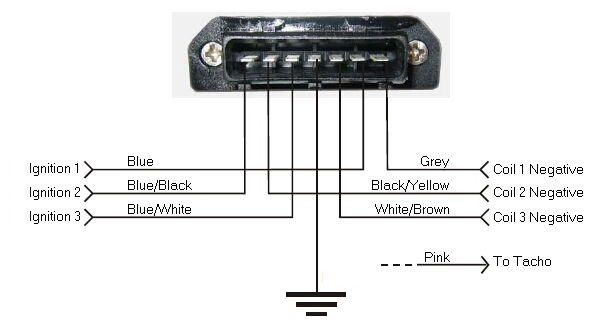

Bosch 3 Channel Ignitor Pinout





3 Channel (early, no longer manufactured):

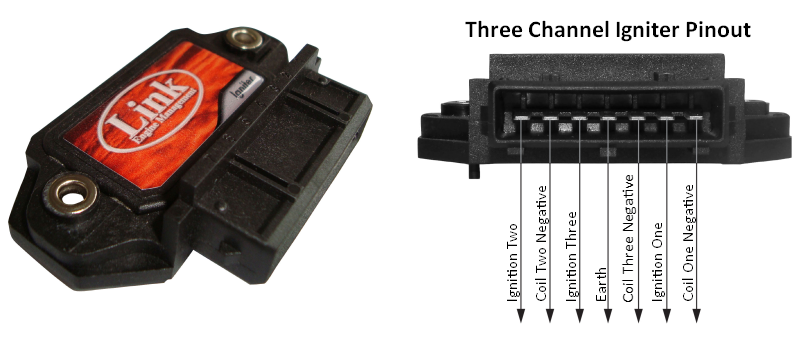

Link 3 Channel Igniter Pinout



2 Channel (early, no longer manufactured):

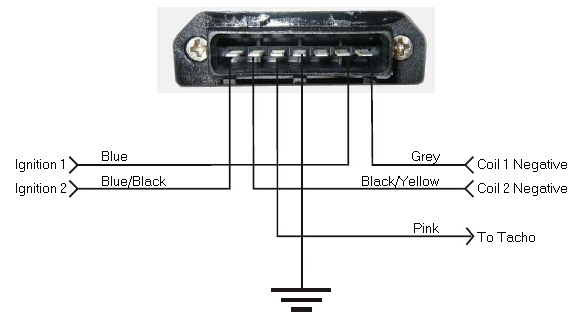

Link 2 Channel Igniter Pinout
