Ensure you are following the given anti-static guidelines. The following steps outline the installation procedure:

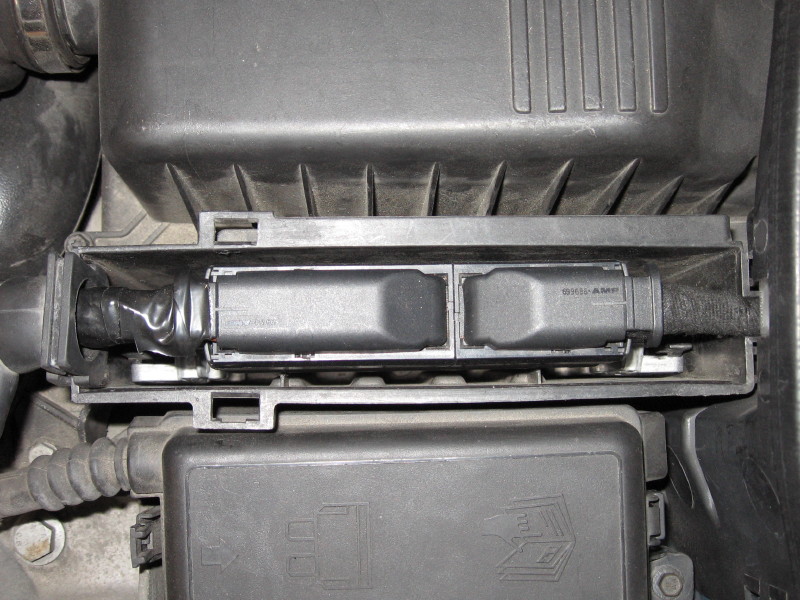

1.Remove the factory ECU from the vehicle: Ensure the key is in the OFF position and allow 10 minutes to pass before proceeding. The factory ECU is located inside the engine bay in a black plastic case. Unplug the wiring harness from the factory ECU and remove any mechanical fasteners holding the ECU in place. DO NOT touch the exposed pins in the factory ECU connector. Remove the factory ECU from the vehicle and place it to one side.
2.Install the Link ECU into the factory ECU's position. Reinstall any fasteners.
3.Connect the wiring loom to the Link ECU.
4.Do NOT attempt to start the vehicle. Proceed to read through the remaining sections of this manual first.
