Ensure you are following the given anti-static guidelines. The following steps outline the installation procedure:

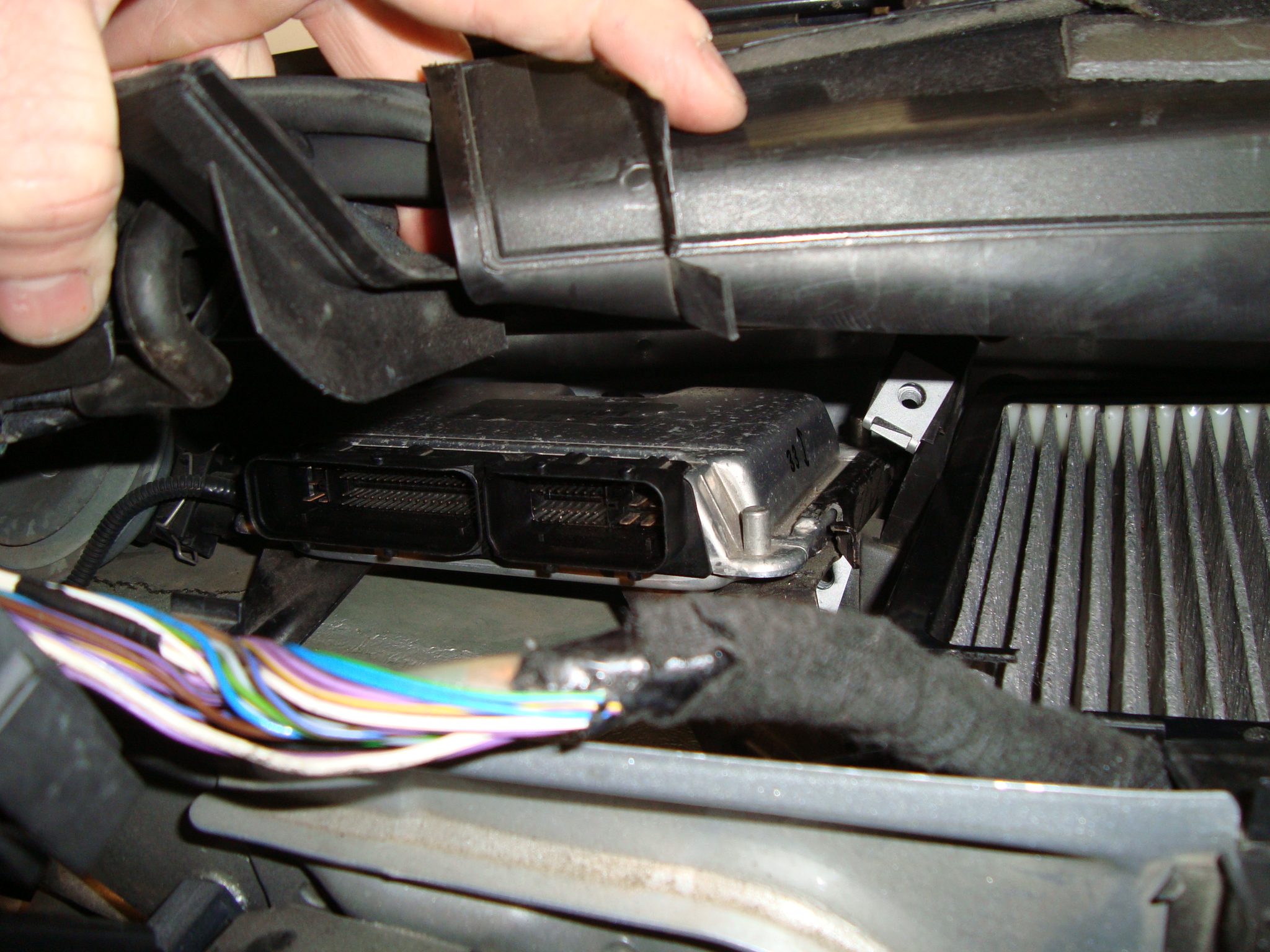

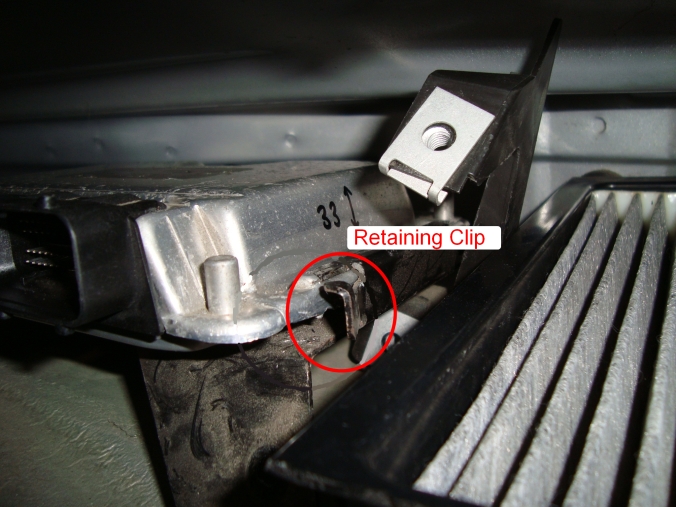

1.Remove the factory ECU from the vehicle: Ensure the key is in the OFF position before proceeding. The factory ECU is located inside the cavity below the front windscreen (under the black plastic panel). Unplug the wiring connectors from the factory ECU, move retaining clip and slide the ECU out of its mount. DO NOT touch the exposed pins in the factory ECU connector. Remove the factory ECU from the vehicle and place it to one side.

2.Install the Link ECU into the factory ECU's position. Reinstall any fasteners.

3.Connect the wiring loom to the Link ECU.

4.Do NOT attempt to start the vehicle. Proceed to read through the remaining sections of this manual first.
