E-throttle Setup Notes
While every effort is taken to ensure correctness, no responsibility will be taken for the consequences of any inaccuracies or omissions.
Part Numbers |

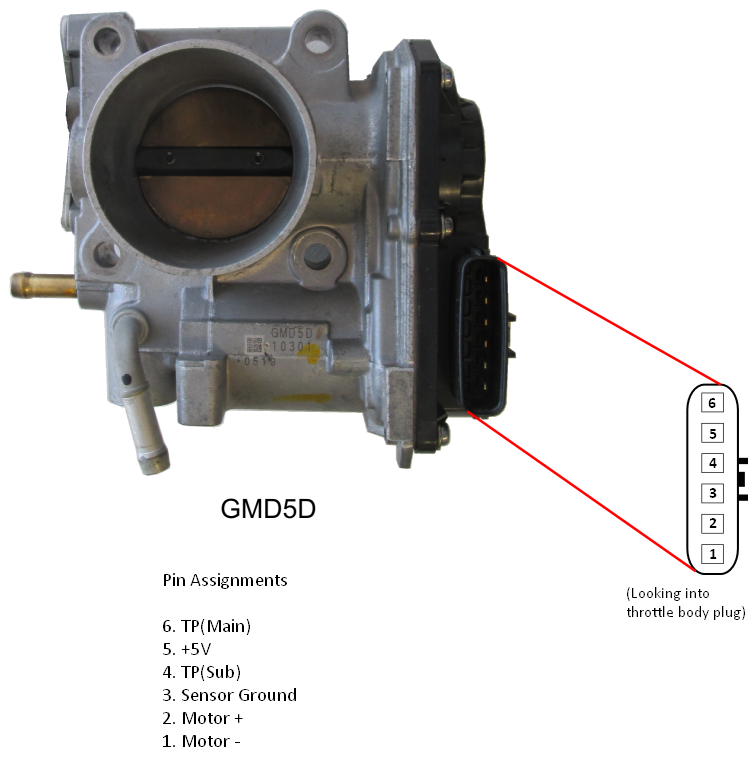

GMD5D |
Vehicle Make and Model |
2008 to 2013 Honda Jazz and City with L15A engine. |
P Gain |
7.00 |
I Gain |
0.031 |
D Gain |
40.00 |
Deadband % |
0.1 |
Max DC |
80 |
Min DC |
-80 |
Frequency (Hz) |
500 |
