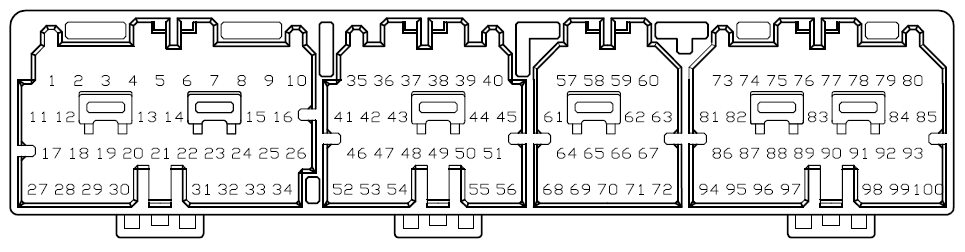

Pin |
ECU Pin |
Function |
Pin |
ECU Pin |
Function |
1 (C88 10) |
Injector 1 |
Injection |
63 (C85 5) |
nc |
|
2 (C88 9) |
Injector 2 |
Injection |
64 (C85 11) |
nc |
|
3 (C88) |
Injector 3 |
Injection |
65 (C85 10) |
Aux 11 |
Fuel Pump |
4 (C88 7) |
Injector 4 |
Injection |
66 (C85 9) |
nc |
|
5 (C88 6) |
Injector 5 |
Injection |
67 (C85 8) |
nc |
|
6 (C88 5) |
Injector 6 |
Injection |
68 (C85 16) |
nc |
|
7 (C88 4) |
nc |
|
69 (C85 15) |
nc |
|
8 (C88 3) |
nc |
|
70 (C85 14) |
Injector 7 (Aux) |
Air Bypass Valve (ABV) |
9 (C88 2) |
nc |
|
71 (C85 13) |
Aux 2 |
Purge |
10 (C88 1) |
nc |
|
72 (C85 12) |
nc |
|
11 (C88 16) |
+14V Out (VVT) |
VVT Solenoid - Inlet |
|
||
12 (C88 15) |
Aux 1 |
VVT solenoid - Inlet |
73 (C86 8) |
nc |
|
13 (C88 14) |
nc |
Starter Signal (Auto) |
74 (C86 7) |
nc |
|
14 (C88 13) |
DI 9 |
Starter Signal (Manual) |
75 (C86 6) |
nc |
|
15 (C88 12) |
nc |
|
76 (C86 5) |
Aux 3 |
AC Clutch |
16 (C88 11) |
nc |
|
77 (C86 4) |
nc |
|
17 (C88 26) |
EVG |
+5V or Gnd (Jumper) |
78 (C86 3) |
nc |
|
18 (C88 25) |
Ground |
|
79 (C86 2) |
nc |
|
19 (C88 24) |
Ignition 1 |
Ignition |
80 (C86 1) |
nc |
|
20 (C88 23) |
Aux 5 |
ISC Stepper |
81 (C86 13) |
nc |
|
21 (C88 22) |
Aux 7 |
ISC Stepper |
82 (C86 12) |
DI 7 |
Vehicle Speed (From Dash) |
22 (C88 21) |
Aux 6 |
ISC Stepper |
83 (C86 11) |
nc |
|
23 (C88 20) |
Aux 8 |
ISC Stepper |
84 (C86 10) |
nc |
|
24 (C88 19) |
nc |
|
85 (C86 9) |
DI 5 |
Ignition Switch |
25 (C88 18) |
nc |
|
86 (C86 21) |
nc |
|
26 (C88 17) |
nc |
|
87 (C86 20) |
DI 6 |
AC Request |
27 (C88 34) |
Ground |
|
88 (C86 19) |
nc |
|
28 (C88 33) |
Ground |
|
89 (C86 18) |
nc |
|
29 (C88 32) |
Ignition 4 (Aux)* |
Spare |
90 (C86 17) |
nc |
|
30 (C88 31) |
nc |
|
91 (C86 16) |
nc |
|
31 (C88 30) |
Knock 1 |
Knock |
92 (C86 15) |
nc |
|
32 (C88 29) |
Knock 2 |
Knock |
93 (C86 14) |
nc (+12V constant) |
|
33 (C88 28) |
nc |
|
94 (C86 28) |
nc |
|
34 (C88 27) |
nc |
|
95 (C86 27) |
nc |
|
|
96 (C86 26) |
THWO |
Controlled by CAN 2 |
||
35 (C84 6) |
Ground (NE-) |
|
97 (C86 25) |
nc |
|
36 (C84 5) |
Trig 1 |
Trig 1 (NE+) |
98 (C86 24) |
nc |
|
37 (C84 4) |
nc |
|
99 (C86 23) |
nc (+14V Main Relay) |
|
38 (C84 3) |
nc |
|
100 (C86 22) |
+14V (Main Relay) |
ECU Power |
39 (C84 2) |
Ignition 6 (Aux)* |
Spare |
|
||
40 (C84 1) |
+5V Out |
|
Ethrottle 1 |
Ground (Signal) |
|
41 (C84 11) |
Ignition 5 (Aux)* |
Spare |
Ethrottle 2 |
+5V Out |
|
42 (C84 10) |
Trig 2 |
Trig 2 (VVT) |
Ethrottle 3 |
An Volt 10 |
|
43 (C84 9) |
nc |
|
Ethrottle 4 |
An Volt 9 |
|
44 (C84 8) |
An Volt 6 |
MAF Signal |
Ethrottle 5 |
An Volt 8 |
|
45 (C84 7) |
An Volt 3 |
TPS (Main) |
Ethrottle 6 |
An Volt 7 |
|
46 (C84 17) |
Ignition 2 |
Ignition |
Ethrottle 7 |
Aux 10 |
|
47 (C84 16) |
Ignition 3 |
Ignition |
Ethrottle 8 |
Aux 9 |
|
48 (C84 15) |
nc |
|
Expansion 1 |
Ground (Signal) |
|
49 (C84 14) |
nc |
|
Expansion 2 |
An Volt 4 |
|
50 (C84 13) |
nc |
|
Expansion 3 |
An Temp 2 |
|
51 (C84 12) |
nc |
|
Expansion 4 |
+5V Out |
|
52 (C84 22) |
Ground |
|
Expansion 5 |
An Volt 5 |
|
53 (C84 21) |
An Temp 3 |
MAF IAT |
Expansion 6 |
DI 3 |
|
54 (C84 20) |
An Temp 1 |
ECT |
Expansion 7 |
DI 4 |
|
55 (C84 19) |
nc |
|
Expansion 8 |
Injector 8 (Aux) |
|
56 (C84 18) |
nc |
|
Expansion 9 |
An Temp 4 |
|
|
Expansion 10 |
DI 1 |
|
||
57 (C85 4) |
Aux 14 |
Fuel Pump Speed |
Expansion 11 |
DI 2 |
|
58 (C85 3) |
Ignition 8 |
CE Light |
Expansion 12 |
Ignition 4 (Aux) |
|
59 (C85 2) |
Aux 16 (Main Relay) |
ECU Hold Power |
Expansion 13 |
Ignition 5 (Aux) |
|
60 (C85 1) |
nc |
|
Expansion 14 |
Ignition 6 (Aux) |
|
61 (C85 7) |
nc |
|
Expansion 15 |
An Volt 1 |
|
62 (C85 6) |
nc |
|
Expansion 16 |
An Volt 2 |
|
*Note Aux Ign4-6 are pinned out in both the main header and the expansion header

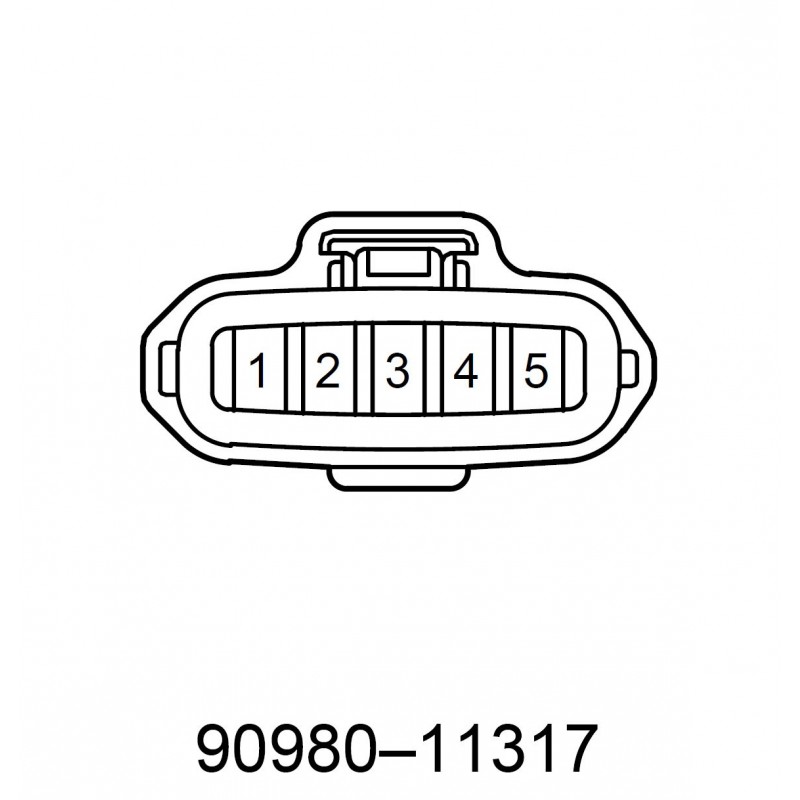

MAF Sensor Pinout
CAUTION: THERE ARE AT LEAST TWO DIFFERENT WIRING CONFIGURATIONS FOR TOYOTA 5 WIRE MAF SENSORS.
If in doubt as to which configuration you have you can measure use a multimeter on the factory MAF's pins to determine the location of the IAT sensor.
i.e. early wiring will have a resistance of ~2.21kΩ to 2.69kΩ at 20°C (68°F) between pins 1 and 2 of the MAF.
i.e. later wiring will have a resistance of ~2.21kΩ to 2.69kΩ at 20°C (68°F) between pins 4 and 5 of the MAF.
JZX100 MAF Pinout
JZS161 2JZGE before 07/2000 (Also JZS161 2JZGTE & JZA80 2JZGTE VVTi) |
||
Pin Number |
Symbol |
Definition |
1 |
THA |
Air Temperature Sensor |
2 |
E2 |
Sensor Ground (Air Temperature Sensor) |
3 |
EVG |
Mass Airflow Sensor Ground |
4 |
+B |
EFI Main Relay Switched Power |
5 |
VG |
Engine Airflow |
JZS161 2JZGE after 07/2000 (Also JZS171 1JZGTE) |
||
Pin Number |
Symbol |
Definition |
1 |
+B |
EFI Main Relay Switched Power |
2 |
EVG |
Mass Airflow Sensor Ground |
3 |
VG |
Engine Airflow |
4 |
THA |
Air Temperature Sensor |
5 |
E2 |
Sensor Ground (Air Temperature Sensor) |
