Launch Fuel Table

This table is provided to inject extra fuel during launch control based on two engine parameters.



---

Launch Ignition Retard Table

The Launch Retard Table is provided to give you control over retard based on two engine parameters.



A typical application for this would be a high powered drag vehicle.



A typical axis setup for this would be Engine Speed (RPM) vs. Throttle Position (TP(Main)).



Once the car is staged, you may want to wait on the launch limiter and begin spooling the turbo with a small amount of retard. As the tree begins to fall, you will apply full throttle at which point the ignition retard increases spooling the turbo even further.

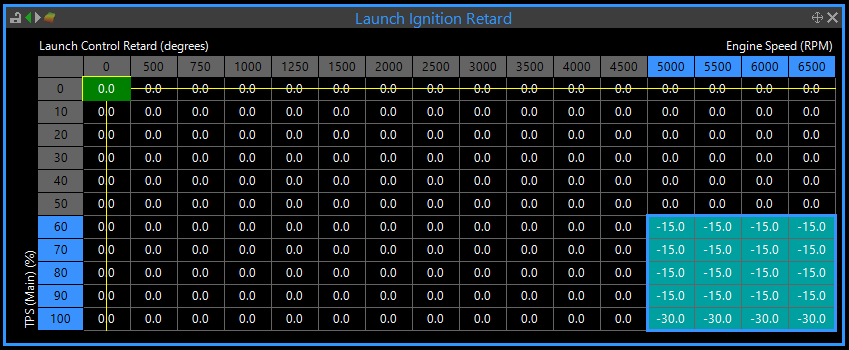

The following example table is given for a rev limit set to 7000RPM.
