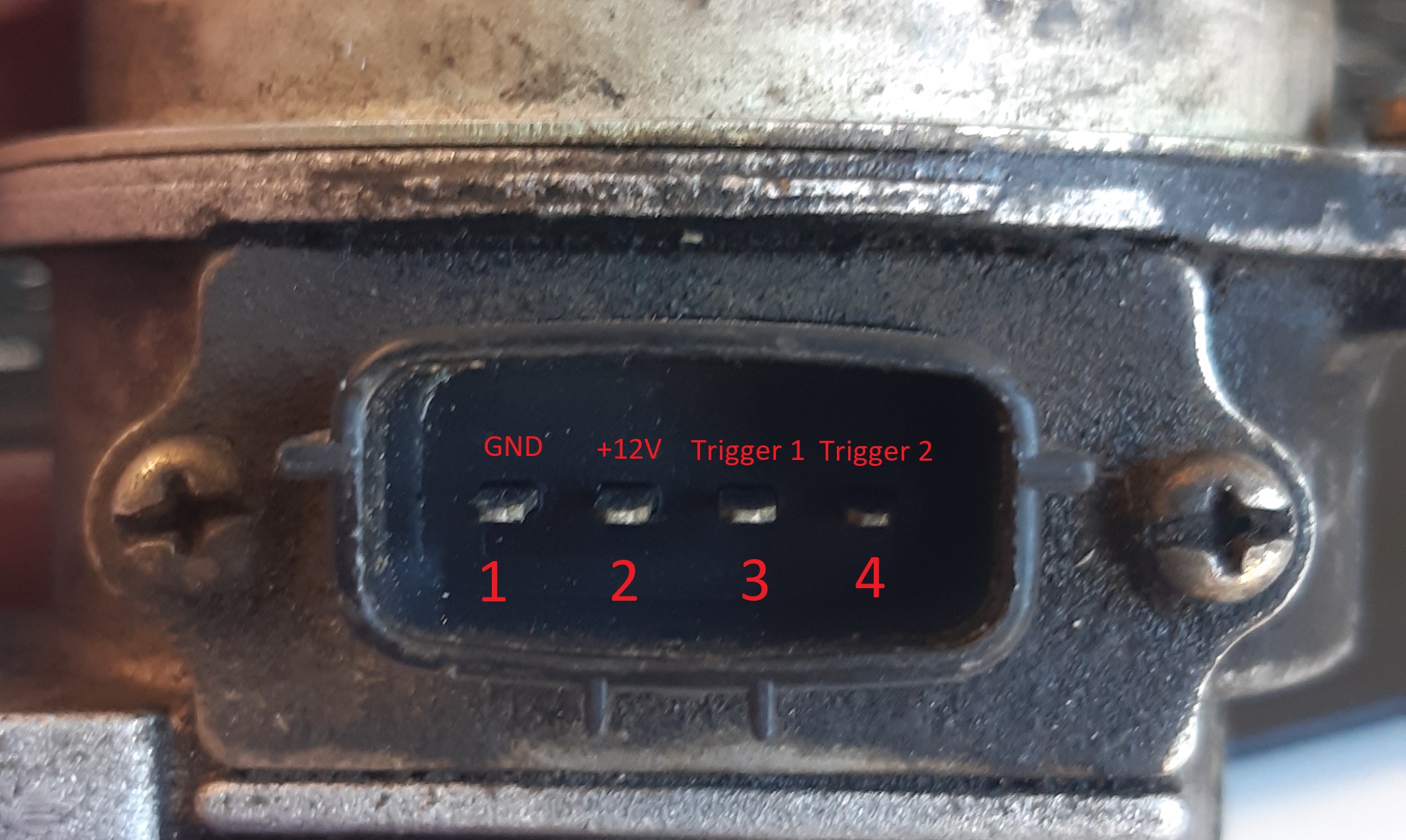

NA6
Pin |
Function |
|---|---|
1 |
Ground (Signal) |
2 |
+12V (Ignition Switched) |
3 |
Trigger 1 |
4 |
Trigger 2 |
1.8 VVT
Mazda MX5 1.8 VVT Trigger Wiring
Wiring Information > Input Signal Wiring > Trigger Inputs > Specific Trigger Applications > Mazda MX5
Wiring Information > Input Signal Wiring > Trigger Inputs > Specific Trigger Applications > Mazda MX5
NA6
Pin |
Function |
|---|---|
1 |
Ground (Signal) |
2 |
+12V (Ignition Switched) |
3 |
Trigger 1 |
4 |
Trigger 2 |
1.8 VVT
Mazda MX5 1.8 VVT Trigger Wiring
