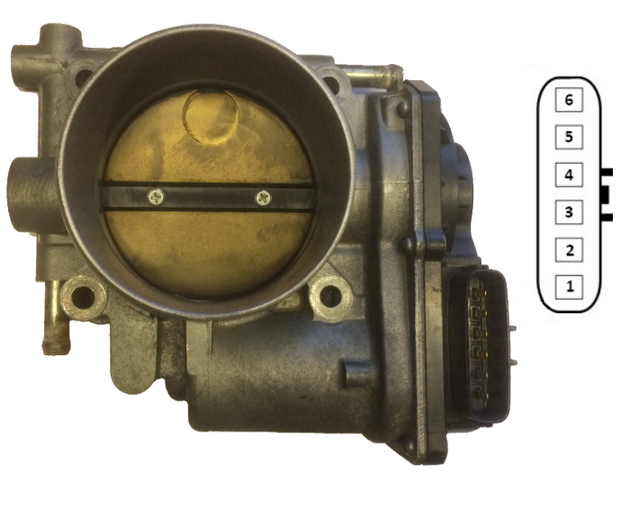

Pin Assignments |
|
6 |
TP (Sub) |
5 |
+5V |
4 |
TP (Main) |
3 |
Sensor Ground |
2 |
Motor - |
1 |
Motor + |
Electronic Throttle settings:
While every effort is taken to ensure correctness, no responsibility will be taken for the consequences of any inaccuracies or omissions.
Proportional Gain |
7.00 |
Integral Gain |
0.031 |
Derivative Gain |
40.00 |
Deadband |
0.1% |
Max Clamp |
100% |
Min Clamp |
-100% |
Frequency (set on Aux output) |
500Hz |
|
|
TPS (Main) Closed |
1.442V |
TPS (Main) Open |
4.238V (note blade can travel past 90°) |
TPS (Sub) Closed |
0.552V |
TPS (Sub) Open |
4.018V (note blade can travel past 90°) |
TPS (Sub) 100% |
100% |
