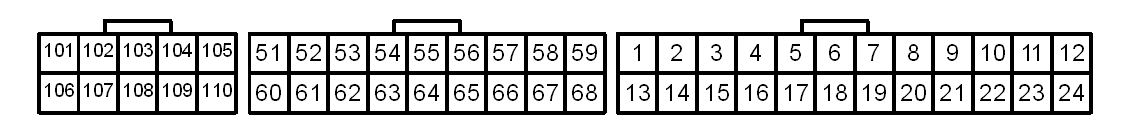

Pin |
ECU Pin |
Function |
Pin |
ECU Pin |
Function |
101 |
Ground (Signal) |
|
1 |
nc |
|
102 |
+14V (Main Relay) |
ECU Power |
2 |
nc |
|
103 |
nc |
|
3 |
nc |
|
104 |
nc |
|
4 |
An Volt 4 |
Oxy Signal |
105 |
Aux 1 |
Wastegate Solenoid |
5 |
DI 2 |
PS Switch |
106 |
Ground |
|
6 |
nc |
|
107 |
+14V (Main Relay) |
ECU Power |
7 |
DI 4 |
A/C Request |
108 |
DI 1 |
Start Signal |
8 |
An Temp 1 |
IAT |
109 |
nc |
|
9 |
nc |
|
110 |
DI 5 |
Ignition Switch |
10 |
An Volt 2 |
MAF Signal |
|
11 |
nc |
|
||
51 |
Injector 1 |
Injection |
12 |
nc |
|
52 |
Injector 2 |
Injection |
13 |
nc |
|
53 |
Aux 2 |
EGR Solenoid |
14 |
nc |
|
54 |
Ignition 1 |
Ignition 1/4 |
15 |
nc |
|
55 |
Ignition 2 |
Ignition 2/3 |
16 |
nc |
|
56 |
Ignition 3 (Aux) |
Fuel Pump Relay |
17 |
Ground (Signal) |
|
57 |
Ignition 4 (Aux) |
Fuel Pressure Control Valve |
18 |
DI 3 |
Vehicle Speed |
58 |
Aux 8 |
ISC Stepper |
19 |
An Volt 1 |
TPS Signal |
59 |
Aux 7 |
ISC Stepper |
20 |
An Temp 2 |
ECT |
60 |
Injector 3 |
Injection |
21 |
Trig 1 |
Trig 1 |
61 |
Injector 4 |
Injection |
22 |
Trig 2 |
Trig 2 |
62 |
Injector 5 (Aux) |
Purge Solenoid |
23 |
+5V Out |
|
63 |
Injector 6 (Aux) |
ECU Hold Power |
24 |
Ground (Signal) |
|
64 |
Aux 3 |
CE Light |
Expansion 1 |
Signal Ground |
|
65 |
Aux 4 |
A/C Relay |
Expansion 2 |
+5V Out |
|
66 |
Injector 6 (Aux) |
ECU Hold Power |
Expansion 3 |
nc |
|
67 |
Aux 5 |
ISC Stepper |
Expansion 4 |
DI 6 |
|
68 |
Aux 6 |
ISC Stepper |
Expansion 5 |
An Volt 5 |
|
|
Expansion 6 |
An Volt 6 |
|
||
On Board Map |
An Volt 3 |
Expansion 7 |
nc |
|
|
Expansion 8 |
An Temp 3 |
|
|||
Note: Injector Drives 7 and 8 aren't exposed and don't have the hardware required to drive Injectors.
