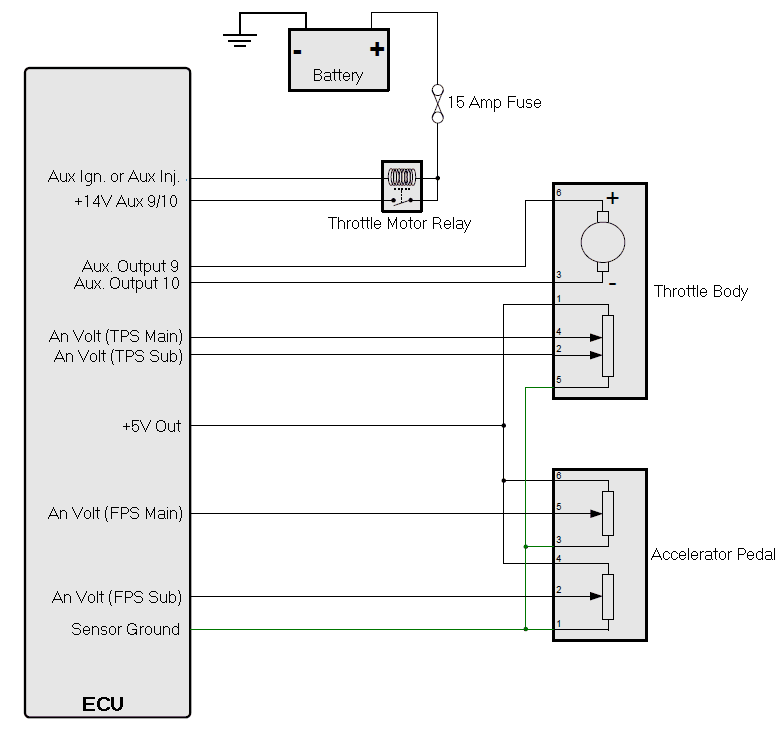

Nissan VQ35 E-throttle Wiring diagram

Nissan VQ35 E-throttle Wiring diagram



Notes:

·Motor + refers to the pin that has battery voltage applied to it to open the throttle.

·It is recommended to use shielded cables for TPS and APS sensors.

·To prevent back feeding, the throttle motor relay must be controlled from a non flywheeled output such as a spare Ignition or Injection channel.





Nissan VQ35 APS Pinout (looking into APS)

Nissan VQ35 APS Pinout (looking into APS)



Nissan VQ35 TPS Pinout (looking into Throttle Body Connector)

Nissan VQ35 TPS Pinout (looking into Throttle Body Connector)
