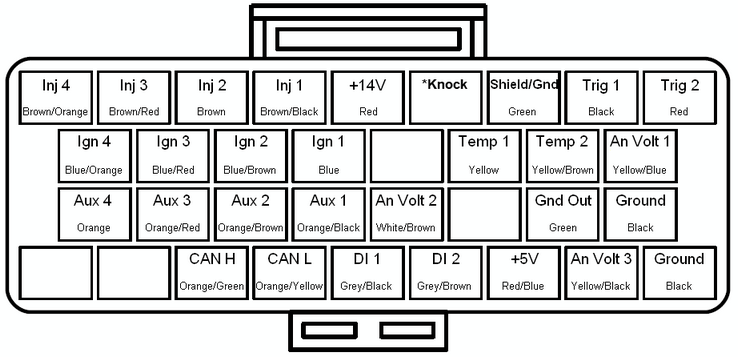

Viewed looking into ECU header (or wire side of loom connector)



G4+ Atom Header



Note: Gnd Out is also known as Sensor Ground.

*Note: Version 3 or newer G4X Atom ECUs support Knock control which is fed into the ECU through pin 6. Versions prior to 3.0 do not have knock control hardware.



G4S Pin Numbering
