E-throttle Setup Notes

While every effort is taken to ensure correctness, no responsibility will be taken for the consequences of any inaccuracies or omissions.

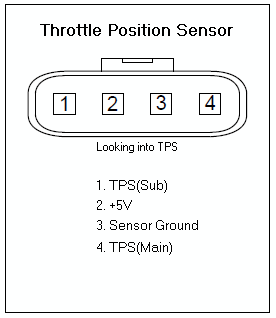

BA Ford Falcon TPS Pinout

Setup Notes

Part Number:

Vehicle Make: Ford

Vehicle Model: BA Falcon

P Gain: 7.00

I Gain: 0.148

D Gain: 35.00

Deadband %: 0.2

Maximum Duty Cycle: 90%

Minimum Duty Cycle: -90%

Frequency (Hz): 500

TP(sub) 100%: 67%

TP(Main) closed (V): 3.80

TP(Main) open (V): 1.65

TP(Sub) closed (V): 1.38

TP(Sub) open (V): 3.84

TPS(Main) error high (V): 4.10

TPS(Main) error low (V): 1.30

TPS(Main) error value (%): 5.0

TPS(Sub) error high (V): 4.10

TPS(Sub) error low (V): 1.00

TPS(Sub) error value (%): 5.0

BA Ford Falcon E-throttle Motor
