Short header Nissan Silvia Plug-In



1994 - 2002 (S13 Type-X, S14 and S15)

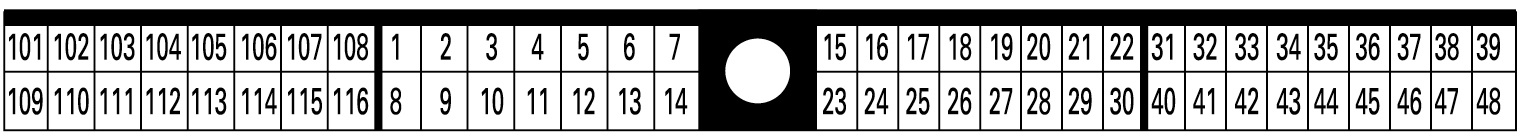

Pin

ECU Pin

S15

S14/N14 Distributed

S14 MultiCoil

S13 Type-X

101

Injector 1

Injection

102

Aux 6

nc

VVL Cam Lift (SR16VE)

Wastegate Solenoid

EGR

103

Injector 3

Injection

104

Aux 5

Fuel Pump Relay *

-

Fuel Pump Relay *

105

Injector 5 (Aux)

Purge / VTC Cam

-

EGR Solenoid

Fuel Pump Control

106

Injector 6 (Aux)

Fuel Pump Relay *

Fuel Pump Relay* / VVL Cam Lift Solenoid (SR16VE)

Fuel Pump Relay

AC / Clutch

107

Ground



108

Ground



109

+12V constant

ISC Flywheeling

110

Injector 2

Injection

111

Aux 7

Oxy Heater

Oxy Heater / Wastegate Solenoid

Oxy Heater

Wastegate Solenoid

112

Injector 4

Injection

113

Injector 7 (Aux)

ISC Solenoid

114

Aux 8

VTC Cam / Purge

Purge Solenoid

VTC Cam Solenoid

-

115

Injector 8 (Aux)

Wastegate Solenoid

-

116

Ground





1

Ignition 1

Ignition

2

Aux 2

Tacho

3

Ignition 2

Ignition (Coil on plug engines)

4

ECCS Relay Control

Pulls to ground when Ign is on

5

Ignition 3

Ignition (Coil on plug engines)

6

Ground



7

nc



8

nc



9

Aux 1

A/C Fan (Engine Fan)

10

Aux 1

A/C Fan (Engine Fan)

11

Aux 3

A/C Clutch

12

nc



13

Ground



14

nc



15

An Temp 2

Spare

16

An Volt 4

AFM Signal (J8 jumper attaches a 1kOhm pullup)

17

Ground (AFM)



18

An Temp 1

ECT

19

An Volt 1

Oxy Signal

20

An Volt 2

TPS (Main)

21

Ground (Signal)



22

Trig 2

Trig 2 (Trig 1 via dip switch)

23

nc



24

Aux 4

CE Lamp

25

Ignition 4

Ignition (Coil on plug engines)

26

nc



27

Knock 1

Knock

28

nc



29

Ground (Signal)



30

Trig 2

Trig 2 (Trig 1 via dip switch)

31

Trig 1

Trig 1 (Trig 2 via dip switch)

32

DI 5

Vehicle Speed

33

nc



34

DI 2

Start Signal

35

DI 4

Neutral Switch

36

12V Ignition Sw Input

Controls Pin 4

37

+5V Out



38

+14V ECCS Relay

ECU Power

39

Ground



40

Trig 1

Trig 1 (Trig 2 via dip switch)

41

DI 1

A/C In

42

nc



43

DI 3

Power Steer Switch

44

nc



45

nc



46

nc



47

+14V ECCS Relay

ECU Power

48

Ground





1991 - 1993 (S13)

Pin

ECU Pin

S14/N14 Distributed

S14 MultiCoil

S13

101

Injector 1

Injection

102

Aux 6

VVL Cam Lift (SR16VE)

Wastegate Solenoid

EGR

103

Injector 3

Injection

104

Aux 5

Fuel Pump Relay *



Fuel Pump Relay *

105

Injector 5 (Aux)

-

EGR Solenoid

Fuel Pump Control

106

Injector 6 (Aux)

Fuel Pump Relay* / VVL Cam Lift Solenoid (SR16VE)

Fuel Pump Relay

AC / Clutch

107

Ground


108

Ground


109

+12V constant

ISC Flywheeling

110

Injector 2

Injection

111

Aux 7

Oxy Heater / Wastegate

Oxy Heater

Wastegate Solenoid

112

Injector 4

Injection

113

Injector 7 (Aux)

ISC Solenoid

114

Aux 8

Purge Solenoid

VTC Cam Solenoid

-

115

Injector 8 (Aux)

Spare

116

Ground





1

Ignition 1

Ignition

2

Ignition 2

Ignition (Coil on plug engines)

3

Aux 2

Tacho

4

ECCS Relay Control

Pulls to ground when Ign is on

5

nc



6

Ground



7

nc



8

Ignition 3

Ignition (Coil on plug engines)

9

Ignition 4

Ignition (Coil on plug engines)

10

nc



11

Aux 3

A/C Clutch

12

nc



13

Ground



14

nc



15

An Temp 2

Spare

16

An Volt 4

AFM Signal (J8 jumper attaches a 1kOhm pullup)

17

Ground (AFM)



18

An Temp 1

ECT

19

An Volt 1

Oxy Signal

20

An Volt 2

TPS (Main)

21

Ground (Signal)



22

Trig 2

Trig 2 (Trig 1 via dip switch)

23

nc



24

Aux 4

CE Lamp

25

Aux 1

Ignition (Coil on plug engines)

26

nc



27

Knock 1

Knock

28

nc



29

Ground (Signal)



30

Trig 2

Trig 2 (Trig 1 via dip switch)

31

Trig 1

Trig 1 (Trig 2 via dip switch)

32

DI 5

Vehicle Speed

33

nc



34

DI 2

Start Signal

35

DI 4

Neutral Switch

36

Ignition Switch

Controls ECCS Relay Output

37

+5V Out



38

+14V ECCS Relay

ECU Power

39

Ground



40

Trig 1

Trig 1 (Trig 2 via dip switch)

41

DI 1

A/C In

42

nc



43

DI 3

Power Steer Switch

44

nc



45

nc



46

nc



47

+14V ECCS Relay

ECU Power

48

Ground





* Fuel Pump Relay could be on Aux 5 OR Inj 6

Note: Injector Drive 7 has extra hardware attached to it related to the ISC and so is not suitable for driving an injector without modification.



On Board MAP

An Volt 3

Expansion 1

Signal Ground

Expansion 2

+5V Out

Expansion 3

DI 6

Expansion 4

DI 7

Expansion 5

An Volt 5

Expansion 6

An Volt 6

Expansion 7

An Temp 3

Expansion 8

An Temp 4

Expansion 9

Ign 5

Expansion 10

Ign 6

Expansion 11

Ign 7

Expansion 12

DI 8

Expansion 13

An Volt 8

Expansion 14

An Volt 9

Expansion 15

An Volt 10

Expansion 16

An Volt 11
