2004-2008 Swift (chassis RS416)

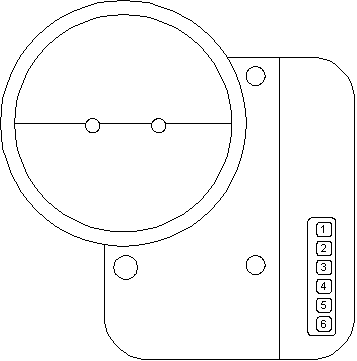

Suzuki Swift Throttle Position Sensor Wiring

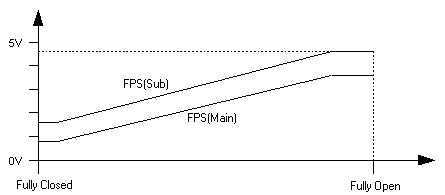

Suzuki Swift Throttle Position vs Output Voltage
Pin # |
Description |
1 |
TPS(Main) |
2 |
+5V |
3 |
TPS(Sub) |
4 |
Sensor Ground |
5 |
Motor - |
6 |
Motor + |
2008-2012 Swift
Suzuki Swift Throttle Position Sensor Wiring
Pin # |
Description |
1 |
+5V (Sub) |
2 |
+5V (Main) |
3 |
TPS(Main) |
4 |
Sensor Ground (Main) |
5 |
Sensor Ground (Sub) |
6 |
TPS(Sub) |

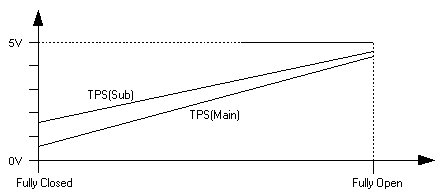

2008-2012 Suzuki Swift Throttle Position vs Output Voltage
Accelerator Pedal Wiring
Pin # |
Description |
1 |
APS(Main) |
2 |
Sensor Ground (Main) |
3 |
+5V (Main) |
4 |
APS(Sub) |
5 |
Sensor Ground (Sub) |
6 |
+5V (Sub) |
Suzuki Swift Pedal Position vs Output Voltage
