E-Throttle Wiring

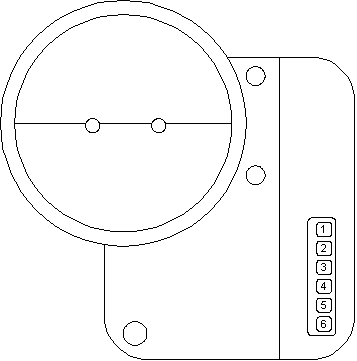

Toyota 3UR-FE E-Throttle Wiring

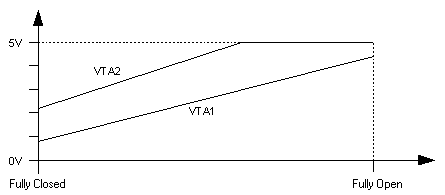

Toyota 3UR-FE E-Throttle Position vs Output Voltage
Pin # |
Toyota Naming |
Description |
1 |
VTA1 |
TPS(Main) |
2 |
VC |
+5V |
3 |
VTA2 |
TPS(Sub) |
4 |
E2 |
Sensor Ground |
5 |
Motor - |
|
6 |
Motor + |
Accelerator Pedal Wiring
Pin # |
Toyota Naming |
Description |
1 |
VPA |
APS(Main) |
2 |
EPA |
Sensor Ground (Main) |
3 |
VCPA |
+5V (Main) |
4 |
VPA2 |
APS(Sub) |
5 |
EPA2 |
Sensor Ground (Sub) |
6 |
VCPA2 |
+5V (Sub) |

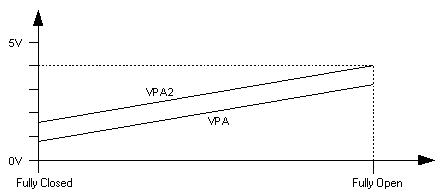

Toyota 3UR-FE APS Pedal Position vs Output Voltage
