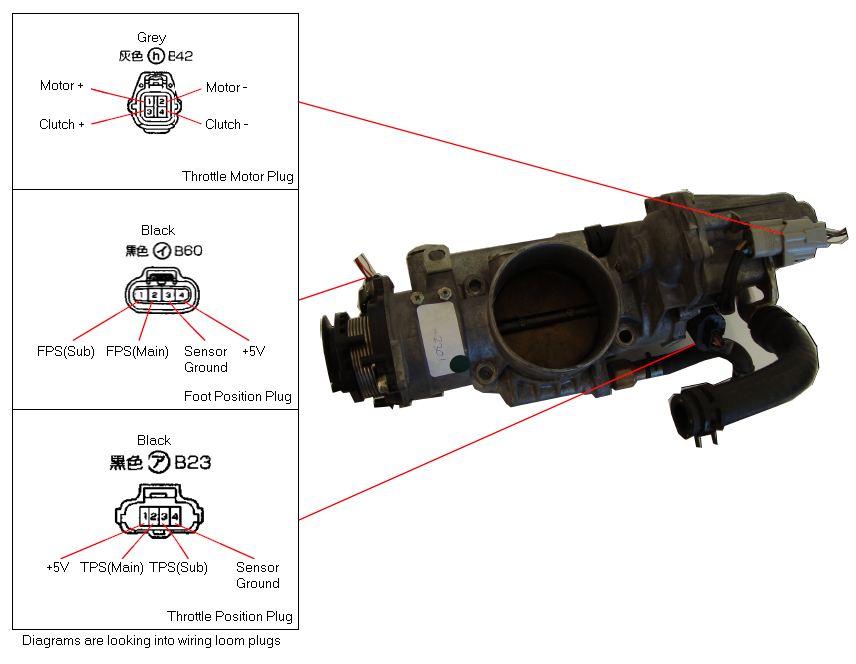

Toyota Clutched E-throttle Pinout

Setup Notes

Part Number

Vehicle Make

Toyota

Engine Models

3S-GTE, 1UZ-FE

P Gain

8.00

I Gain

0.121

D Gain

60.00

Deadband %

0.2

Max DC

95

Min DC

-95

Frequency (Hz)

500

TP(sub) 100%

68.5%

TP(Main) closed (V)

0.29 V

TP(Main) open (V)

3.92 V

TP(Sub) closed (V)

1.93 V

TP(Sub) open (V)

4.99 V

AP(Main) closed (V)

0.55 V

AP(Main) open (V)

4.26 V

AP(Sub) closed (V)

2.30 V

AP(Sub) open (V)

4.99 V

Connect the negative of the clutch to a native auxiliary channel (not aux-fuel or aux-ign). Connect the clutch positive to a switched 12V (must not be hot fed). Set the function to 'Test PWM' with a frequency of 250 Hz.
