See the Auxilary Wiring Chart for pin availability. Note that Injection and Ignition drives used for ISC must have an external fly-wheeling diode wired.
A two terminal ISC solenoid may be wired to Auxiliary Channels 1 to 8. Ignition Channels 1 to 8 can also be used to control a two terminal ISC Solenoid however an external fly-wheeling diode must be wired.
Two terminal ISC solenoids need only one auxiliary output to open the solenoid. A spring is used to automatically close the solenoid. Connect one terminal to the engine managements power supply and connect the remaining terminal to an Auxiliary/Ignition/Injection Output. The orientation of the wires does not matter.
An ISC solenoid must be wired to a switched power supply. Note that some Nissan ISC solenoids are powered directly from the battery, this wiring must be changed.

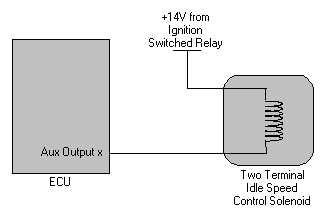

Wiring for two-terminal ISC solenoid on Auxiliary Output

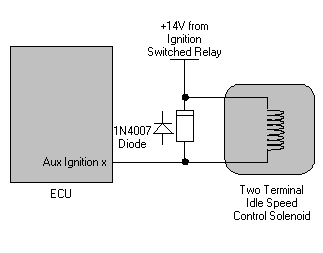

Wiring for two-terminal ISC solenoid on Ignition or Injection Output
