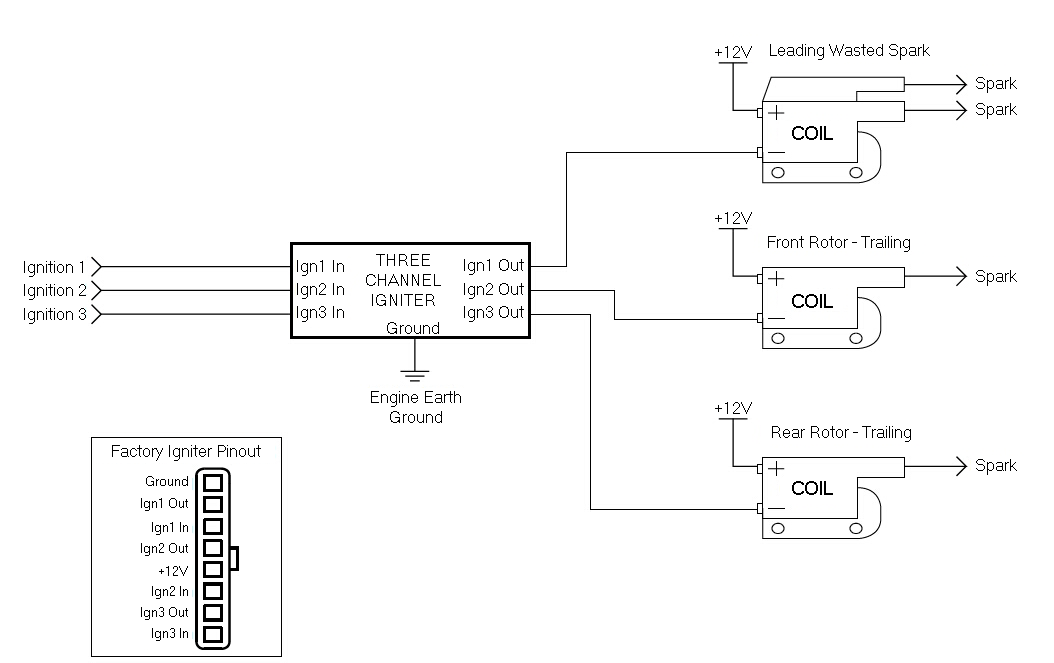

Mazda 13B Ignition Wiring

Note the plugin ECUs have Ignition 2 wired to the rear rotor and Ignition 3 wired to the front rotor and so they require a trigger offset of ~180.

Refer here for more Rotary Ignition mode information
