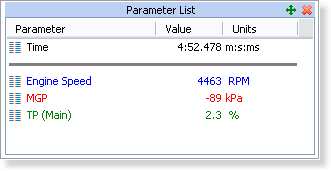

The parameter list shows the current cursor values of parameters. This is useful in conjunction with the Time Plot.





---

Creating a Parameter List

To create a Parameter List:

·Click Logging > Parameter List in the menu or

·Right Click in open space > Select New View > Select Parameter List



---

Adding Parameters to the Parameter List

To add parameters to the view, right click select 'Properties'. The following dialog will appear:



From this window parameters and groups can be added. Parameters can also be removed or edited. Click either 'Add Group' or 'Add Parameter', the following selection form will appear. 'Add Group' isn't available for all Views.



Click or search for the required parameter. Multiple parameters can be selected using the Shift and Ctrl keys, entire categories may be selected. Click OK to add the parameter to the view. Note: When searching or viewing logged parameters, icons indicate whether a parameter has data in the current log file.

Here the user has searched 'eng', the list is displayed alphabetically, and the icons now indicate whether the parameter has data in the current log file.





The user can also search the logged parameters for a specific parameter, here the icons will always be green.
